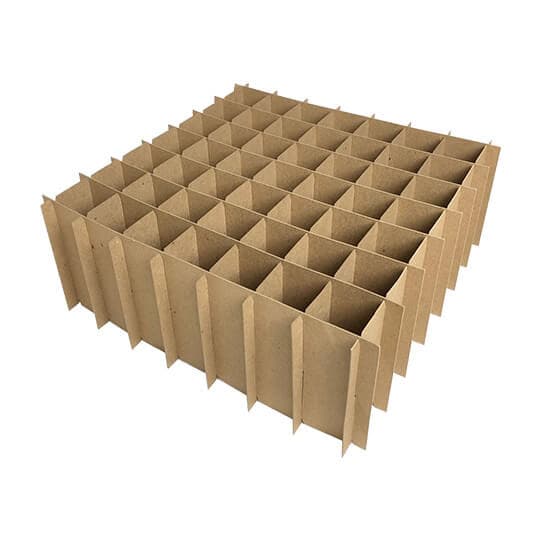

Corrugated inserts that hold products firmly — die-cut cushioning structures that stop internal movement and transit damage.
Most transit damage is products hitting each other or the wall. Precision inserts grip each unit, absorb shock and keep fragile items suspended away from impact zones.
These formats are converted on precision die-cutting and creasing tooling maintained to tight tolerances — the difference between an insert that grips and one that rattles is fractions of a millimetre. Tooling is developed from your sample or drawing, prototyped, drop-tested where relevant, and only then released to production.
| Type | Die-cut engineered inserts |
|---|---|
| Fit | Product-specific cavities |
| Testing | Drop-and-shake validated |
| Boards | 3-ply & E-flute options |
| Printing | Up to 4-colour multicolour flexo, proofed |
| Quotation | Within 4 business hours |
Specify these formats from the product outwards: unit dimensions and weight fix the cell or cavity size; count-per-pack fixes the sheet layout; handling method (manual, line-side, automated) fixes board grade and style. Send a drawing, a sample or even a photo with dimensions and we will develop the format from it.
Indian corrugated boxes are governed by IS 2771:2022, which ties board type to the maximum mass of contents and prescribes minimum bursting strength and — new in the 2022 revision — a minimum Edge Crush Test value. The rows relevant to corrugated inserts:
Kraft liners (dark) bonded to fluted medium (waves). More walls = more stacking backbone — the exact minimums are in the IS 2771:2022 table below.
| Board type | Max contents | Max L+W+H | Min bursting strength | Min ECT |
|---|---|---|---|---|
| Single wall (3-ply) | Up to 5 kg | 635 mm | 6 kgf/cm² | 3.0 kN/m |
| Up to 8 kg | 900 mm | 8 kgf/cm² | 4.0 kN/m | |
| Up to 10 kg | 1125 mm | 9 kgf/cm² | 4.25 kN/m | |
| Up to 15 kg | 1275 mm | 10 kgf/cm² | 4.5 kN/m |
Reference values from IS 2771 (Part 1): 2022, Bureau of Indian Standards — the governing Indian specification for corrugated fibreboard boxes. We engineer to or beyond these minimums for your load.
Stacking strength is engineering, not guesswork. Box Compression Test (BCT) capacity can be estimated with the McKee formula — BCT ≈ 5.87 × ECT × √(board caliper × box perimeter) — and then verified on the actual box. We apply safety factors of 2× for short-cycle distribution up to 4× for long-hold warehousing (per ASTM D642 practice), because long-term usable strength under load creep is only 50–60% of the peak laboratory value.
Every tonne of recycled-fibre corrugated board avoids roughly 180 kg of CO₂ versus virgin production (DEFRA life-cycle factors), and industry equivalences credit each tonne of recycled paper with saving about 17 trees, ~26,500 litres of water and ~4,000 kWh of energy (US EPA). Corrugated is also India’s practical answer to the single-use-plastic phase-out: recyclable, repulpable and biodegradable in weeks rather than centuries.
Commercially, corrugated boxes fall under HSN 4819, and GST on corrugated boxes was reduced from 12% to 5% with effect from 22 September 2025 — worth re-checking on old supplier quotations. Pricing is driven by board grammage (GSM), ply, kraft paper prices (which rose ~6% through 2025), printing and quantity; we quote engineered specifications within 4 business hours, offer sampling before you commit, and support everything from trial lots to annual rate contracts.
We work from the product sample or drawing, prototype cavities, and drop-test until movement is eliminated.
Usually competitive, recyclable with the box, and easier for customers to dispose of — a common foam replacement.
Corrugated boxes fall under HSN 4819; GST was reduced from 12% to 5% effective 22 September 2025 (56th GST Council). We invoice at the current applicable rate with full documentation.
MOQs depend on size and print complexity — trial lots are welcome, and repeat production is scheduled to committed dispatch dates. Sampling comes first on request; quotations are returned within 4 business hours.
Yes — scheduled routes cover the full 160 km radius around our Kosamba, Surat plant (Surat, Hazira, Navsari, Bharuch, Ankleshwar, Vapi, Valsad, Daman, Silvassa, Vadodara), with pan-India full-truck programmes beyond it.
Serving Surat, Hazira, Bharuch, Ankleshwar, Vapi, Navsari, Vadodara and all of industrial Gujarat within 160 km — plus pan-India programmes.
